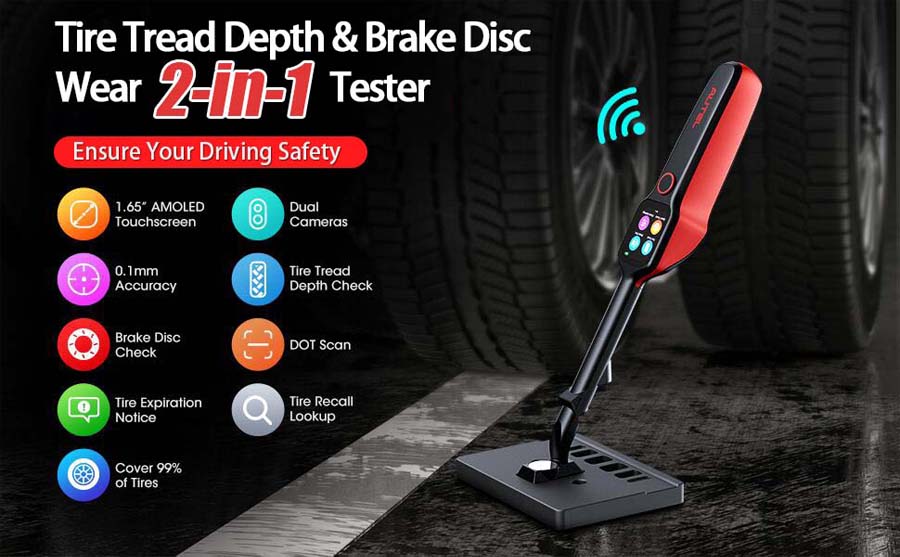

Autel Maxi TPMS TBE200 is a laser tire tread depth and brake disc wear 2-in-1 tester, which can provide users with fast and accurate wear measurement(0.1 mm accuracy).

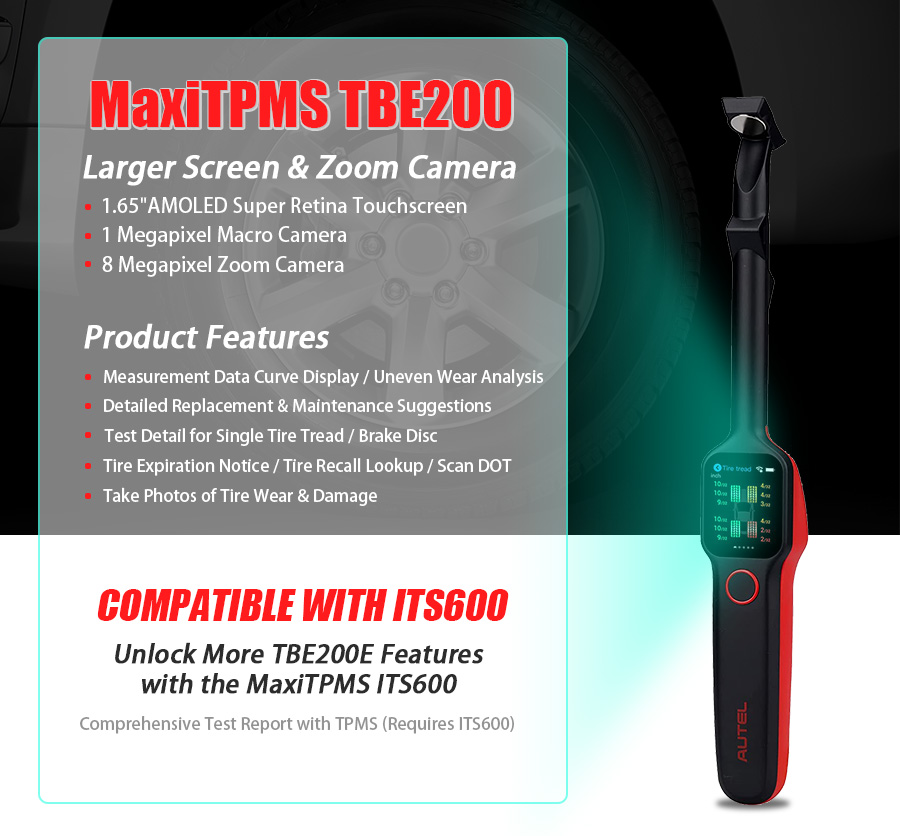

Autel Maxi TPMS TBE200 is a laser tire tread depth and brake disc wear 2-in-1 tester, which can provide users with fast and accurate wear measurement(0.1 mm accuracy). It has a 1.65-inch AMOLED super retina touch screen, a 1-megapixel macro camera, and an 8-megapixel zoom camera to display the measurement data curve in real time. The TBE200 dual camera enables users to record tire wear and damage and scan the tire identification number (TIN).
Autel Maxi TPMS TBE200 has functions of scanning DOT, tire expiration notice, tire recall lookup, taking photos of tire wear and damage etc. With 1.65” Amoled super retina touchscreen, dual camera, real-time tire health/uneven wear analysis, full tread measurement, It supports almost all tire types, comprehensive test report (Need to work with ITS600).
【TIRE TREAD DEPTH & BRAKE DISC WEAR TESTERS】Why choose TBE200? Autel MaxiTPMS TBE200 is not only a laser inspector with a measuring accuracy of 0.1 mm, but also can display measurements graphically. It is convenient for technicians and repair shops workers to measure tread depth/brake disc wear without removing wheels. TBE200 provides 4 possible results (Gray, Green, Yellow, Red) are represented to the degrees of tire wear/wear status, it offers accurate analysis to ensure your driving safety.
【REAL-TIME TIRE HEALTH ANALYSIS】Autel TBE200 tread depth reader provides wear analysis and displays the measurement data curves in real-time and service advice on its 1.65-inch high resolution super Retina touchscreen AMOLED. The full-color graphical display illustrates wear and provides service advice, including tire and brake disc replacement, tire rotation, and 4-wheel alignment. Adding scan DOT, tire expiration notice, tire recall lookup functions help you get the tire data easier.
【ENHANCING THE TBE200 WITH THE ITS600】The TBE200 will offer optimal performance when paired with the ITS600 TPMS tool(sold separately). When used with the ITS600, The TBE200 will take advantage of the ITS600’s larger screen to collect tire tread and brake disc wear information, combine it with TPMS information from the ITS600 to produce comprehensive vehicle health reports that include detailed information for both service areas. These reports can be printed and presented or kept as records for the repairer.
【WIDE VEHICLE COVERAGE & ONE-YEAR WARRANTY 】Autel TBE200 TMPS tool not only supports 99% vehicle including passenger cars, off-roads and commercial vehicles, but also is compatible with almost all tire types (Goodyear, Continental, Bridgestone, Dunlop etc) on the market. TBE200 comes with one-year warranty and 100% risk-free purchases. TBE200 will be your best choice!
Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement
Laser measurement with 0.1mm accuracy
Full tread measurement
Quick Check both tread depth & brake disc
Real-time Tire Health Analysis
Real-time measurement data on touchscreen
Measurement data curve display
Uneven wear analysis
Test detail for single tire tread / brake disc
Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
Scan DOT, tire expiration notice, tire recall lookup
Take photos of tire wear & damage
Comprehensive Test Report
Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)
Easy to Use QR Code Report Download & Sharing
||4x ARM Cortex-A35 (1.5 GHz)
||1GB RAM LPDDR3 & 4GB ROM
||1.65-inch AMOLED capacitive touchscreen with 348×442 resolution
• USB 2.0, Type C
||CMOS WXGA, 1 megapixel & 8 megapixel, 30fps
|Power and Battery
||• 3.7 V/3000 mAh 18650 lithium-ion battery
• Charges via 5 V AC/DC power supply
|Tested Battery Life
||Around 8 hours of continuous use
|Battery Charging Input
||5 V/1.5 A
||300 mA (AMOLED on with default brightness) @3.7 V
||-10 to 45°C(14 to 113°F)
||-20 to 60°C (-4 to 140°F)
|Dimensions (W x H x D)
||283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”)
||188 g (0.41 lb.)
