The MaxiPRO MP808BT PRO is a 7-inch wireless Android-based touchscreen tablet with All Systems Scan functionality and an extensive Service Menu for U.S., Asian, and European vehicles, 1996 and newer.
The MaxiPRO MP808BT PRO is a 7-inch wireless Android-based touchscreen tablet with All Systems Scan functionality and an extensive Service Menu for U.S., Asian, and European vehicles, 1996 and newer. The MP808BT PRO, which is equipped with a Bluetooth-enabled VCI, can read and erase codes, view Freeze Frame data and view and graph Live Data for all available systems.
The MP808BT PRO features a powerful Cortex-A55 1.8 GHz processor and 64 GB onboard memory. It offers technicians an extensive service menu, enabling them to quickly perform the most common service tasks.
Advanced features include AutoVIN to instantly identify the vehicle make, model, and year and a cloud-based report management feature to share and manage reports.
All Systems/All Service 7-inch touchscreen wireless tablet
Compatible with U.S., Asian and European vehicles, 1996 and newer.
Read and Erase Codes on all available vehicle systems.
View Freeze Data and View and Graph Live Data.
AutoVIN technology for rapid vehicle identification
Exceptional OE-Level system coverage for all electronic systems
Cloud-based report management for easy viewing and sharing
Powerful Cortex-A55 processor (1.8 GHz) processor
7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
64GB On-board Memory for better performance
Android 11 Operating System for fast boot-up and multitasking
Ergonomic design with rubberized outer protection and a rugged internal housing to withstand everyday shop use.
Shop Management application designed to maintain customer information and vehicle history data.
Contact Us:E-mail: Sales@AutelDiag.comSkype: Auteldiag.comWhatsApp: +86-13372689373
||Cortex-A55 quad-core processor (1.8GHz)
||4GB RAM & 64GB On-board Memory
||7-inch LCD capacitive touchscreen with 1024x600 resolution
USB 2.0，Mini USB 2.0
Wireless BT V2.1+EDR
HDMI Type A
SD Card (Support up to 64GB)
||Light sensor for brightness auto adjust
|Power and Battery
||3.7 V/5000mAh lithium-polymer battery
Charges via 5 VDC power supply
||5 V/1.5 A
||0 to 50°C (32 to 122°F)
||-20 to 60°C (-4 to 140°F)
||270.8 mm (10.0”) x 176.0 mm(6.9”) x 36.0 mm (1.4”)
||885 g (2.31 lb.)
||ISO9141-2, ISO14230-2, ISO15765,K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN,fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6

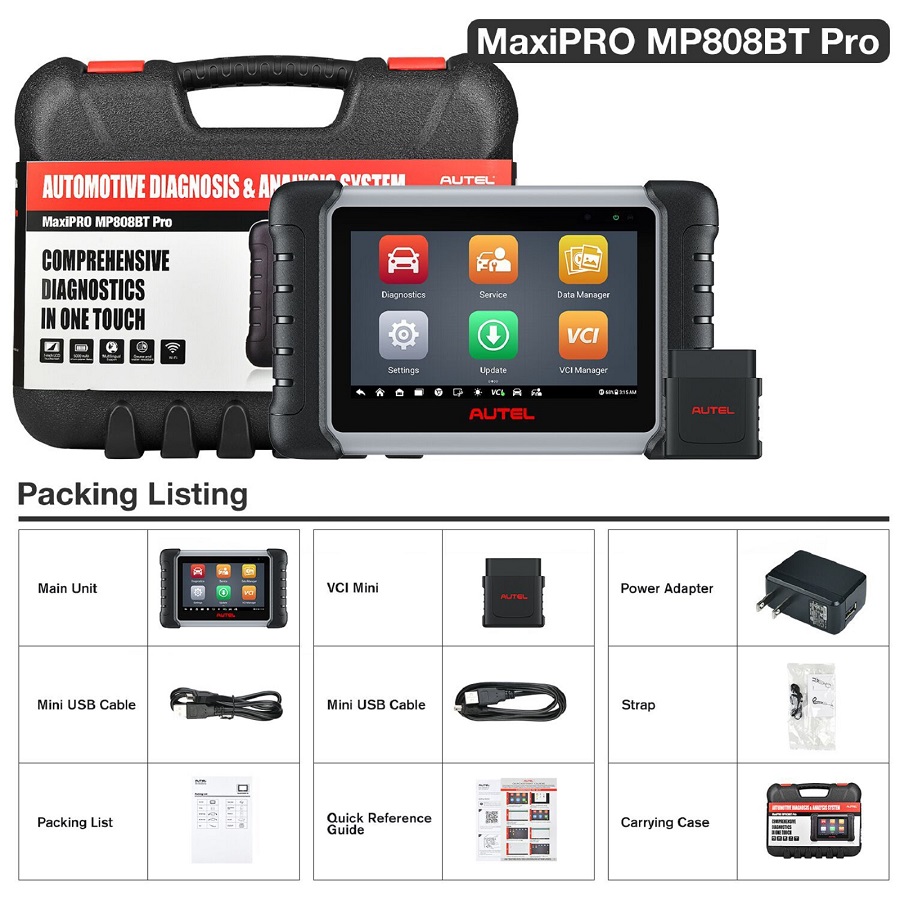

1pc x MaxiPro MP808BT Pro main unit
1pc x Power adapter
1pc x VCI Mini
2pcs x Mini USB cable
1pc x Packing list
1pc x Quick reference guide
1pc x Strap
1pc x Carrying case
