18% off
US/UK/EU Ship Autel MaxiBAS BT506 Battery & Electrical System Analysis Tool Support CCA CA SAE EN IEC DIN JIS MCA, Test Flooded, AGM, AGM Spiral, EFB GEL Batteries
Item No. SZ-AD186
In Stock.
History 1 sold.
Latest price: US$169.00Buy Now: US$139.00
18% off
Autel MaxiBAS BT506: English Version
2 Autel MaxiBAS BT506: English Version
Spring Sale:
Spring Sale buy now!
Autel MaxiCOM Ultra Lite $2706
Autel MaxiSys Ultra $3789
MaxiCOM MK908 PRO II $1799
Auto 5% Off click here!
Contact us:
whatsapp: +86 133 7268 9373
Spring Sale buy now!
Autel MaxiCOM Ultra Lite $2706
Autel MaxiSys Ultra $3789
MaxiCOM MK908 PRO II $1799
Auto 5% Off click here!
Contact us:
whatsapp: +86 133 7268 9373
English Version
Shipping:
Free Shipping
Express Shipping ServiceEstimated delivery time: 5-7 working days.See details »
Returns:
Return for refund within 7 days,buyer pays return shipping. Read details »
Product Description
AUTEL MaxiBAS BT506 is a battery and electrical system analysis tool which enables technicians to view the health status of vehicle's battery and electrical system. It is not an average battery tester because it measures not only the state of charge but also the battery state of health including its capacity, its ability to maintain and store the energy. Using adaptive conductance (an advanced battery analysis method), AUTEL MaxiBAS BT506 can produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, which is vital to determine a battery’s true health.
Product Introduction:
AUTEL MaxiBAS BT506 is a battery and electrical system analysis tool which enables technicians to view the health status of vehicle's battery and electrical system. It is not an average battery tester because it measures not only the state of charge but also the battery state of health including its capacity, its ability to maintain and store the energy. Using adaptive conductance (an advanced battery analysis method), AUTEL MaxiBAS BT506 can produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, which is vital to determine a battery’s true health.

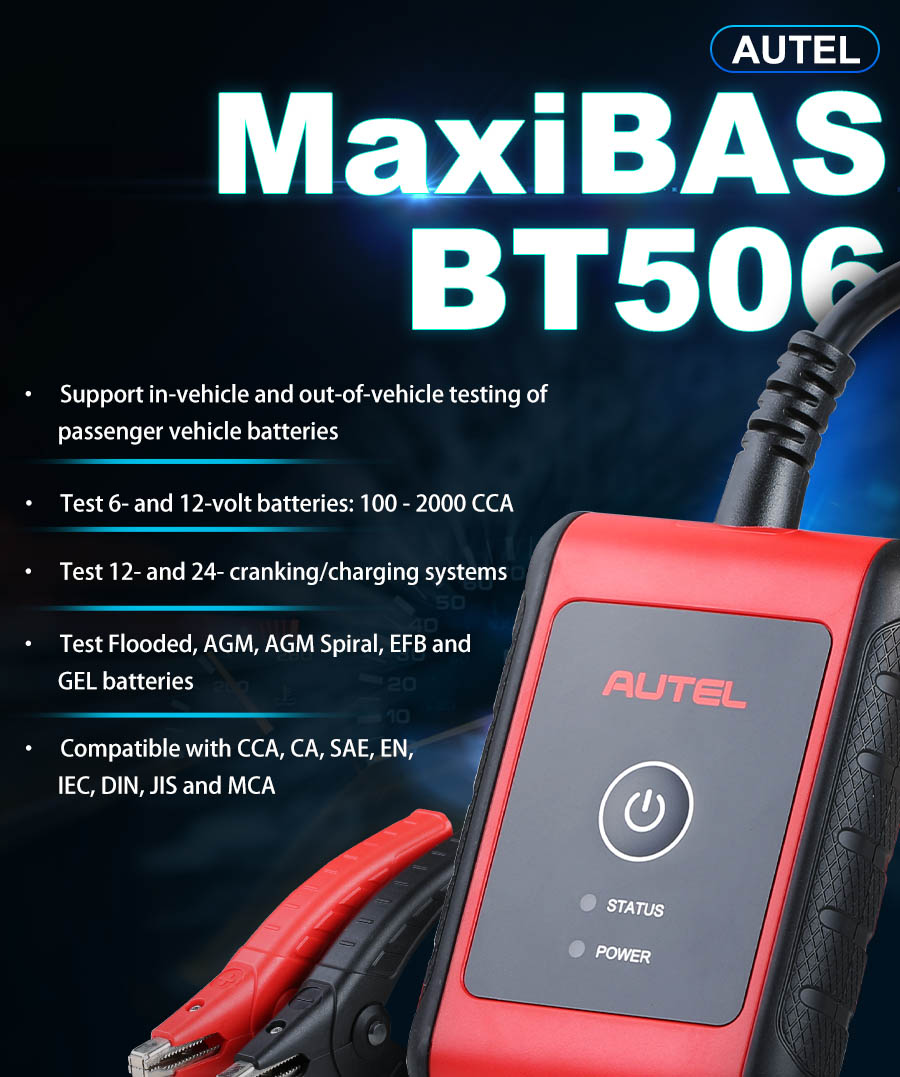

Main Functions of AUTEL MaxiBAS BT506
• Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
• Test 6- and 12-volt batteries: 100 - 2000 CCA
• Test 12- and 24- cranking/charging systems
• Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
• Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
Main Features of AUTEL MaxiBAS BT506

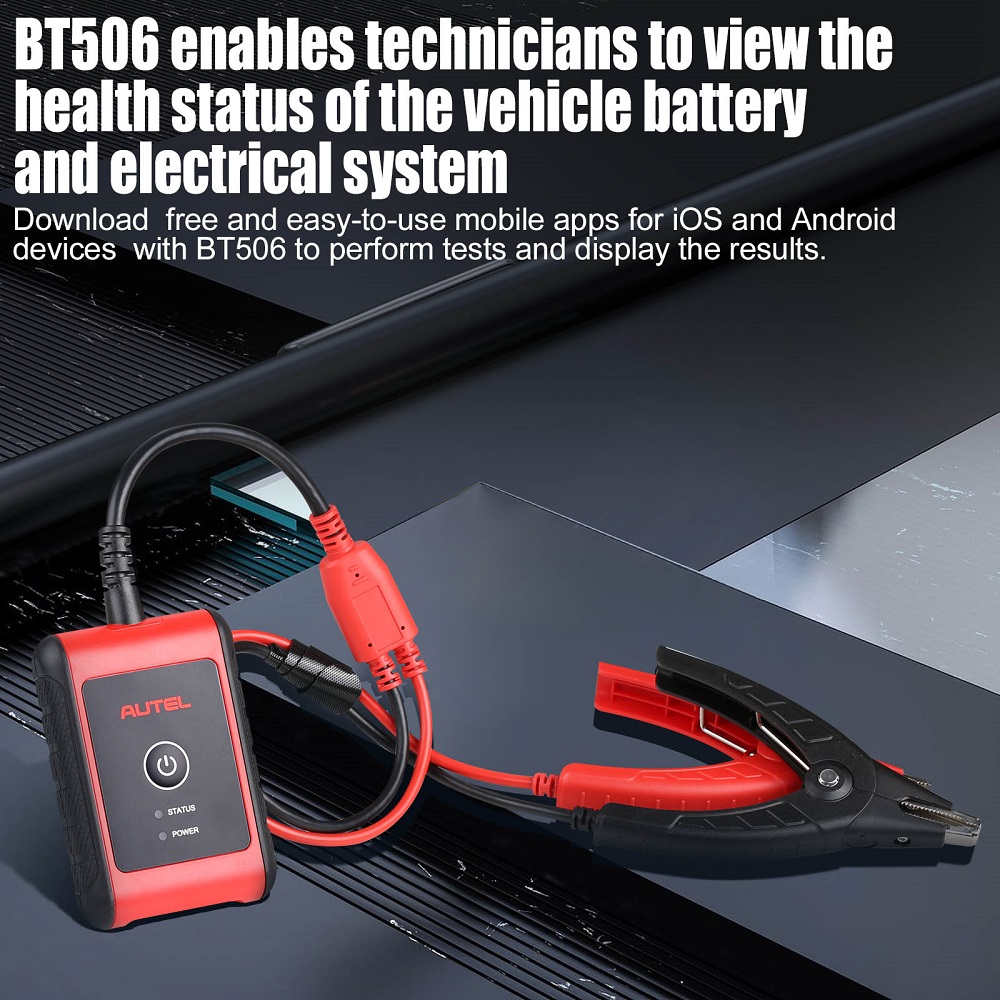

The BT506 is a new app-based battery analysis tool developed by Autel. Download the free and easy-to-use mobile app, available for iOS and Android devices, and use it with the BT506 to perform testing and display test results.

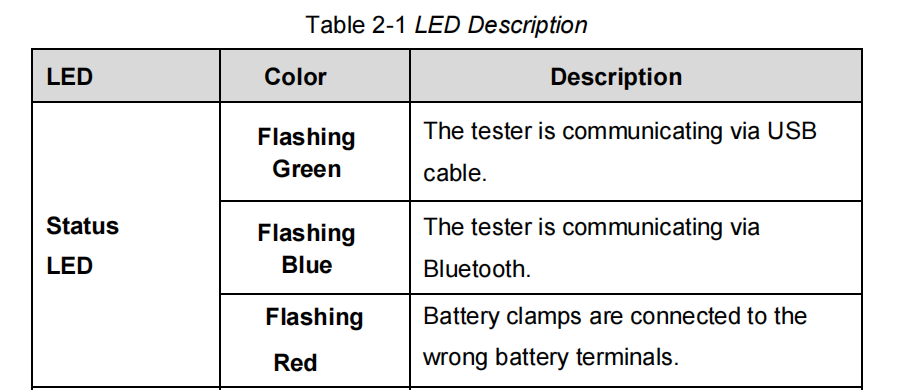

BT506 has positive and negative alligator clamps which are polarity protected, so even if you reverse the clamps and put the negative on the positive terminal, it is OK. In fact, the LED on the tester is color coded to alert the users of connection and testing status, so the testers will flash red to alert you that you have made the error.
The tester is bluetooth enabled and that's how it shares the test information with the app.
The Specifications of AUTEL MaxiBAS BT506
| Item | Description |
| Connectivity | USB 2.0, Type C |
| Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode | |
| Input Voltage | 5 V DC |
| Working Current | < 150 mA at 12 V DC |
| Internal Battery | N/A |
| CCA Range | 100 to 2000 A |
| Voltage Range | 6 to 36 V |
| Working Temperature | -10°to 50° C (14° to 122° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Dimension (L x W x H) | 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable is not included) |
| Weight | 320 g (0.7 lb) |

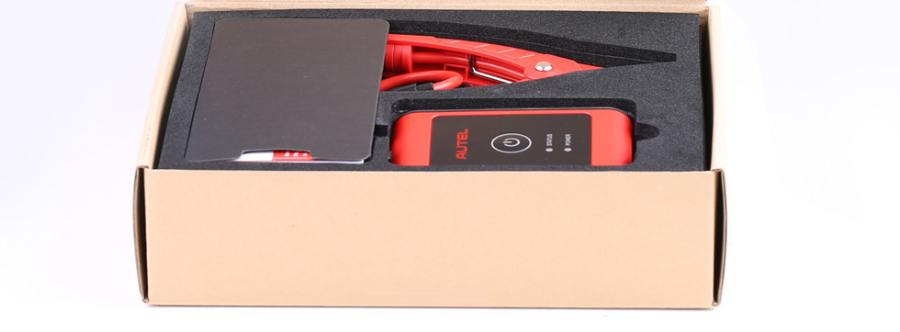

Package Includes:
1pc x MaxiBAS BT506
1pc x User Manual
1pc x User Manual
